ADA Compliant Kitchens -
Wheelchair Accessible Kitchen Units
Residential, Commercial, or Institutional application
accessible Kitchen Units are designed to conform with required
Specifications and Regulations for Americans with Disabilities Act, New York
Local 58/87 and ANSI A117.1 Specifications. Made in several
sizes, color finishes and with just about any appliance combination, depending on the
customer requirements. These wheelchair accessible, ADA compliant,
Barrier-Free Kitchens are available
with microwave oven, full size undercounter refrigerator/freezer, electric
two burner cooktop, range hood sink, kitchen faucet and stainless steel
countertop. Optional, matching wall cabinets for greater kitchen storage
convenience also available.
60" wide ADA
accessible Compact Kitchen Unit
Wheelchair accessible compact kitchen, such as the one
pictured above, which is used by people with physical conditions.
Above: 60" ADA Compliant custom kitchen unit with custom finish laminate and
available with optional drop-in
cooktop. Wider units can also have built-in under counter refrigerator
and/or ADA dishwasher or ADA cooking range.
Available in various width sizes, wood cabinet finishes and countertops, see
below for details.
ADA Compliant Compact Kitchens, which provide
greater accessibility to people using wheelchairs, are custom made
and available in various width sizes.
When placing an order, specify width size, color, gas or electric cooking and
standard or recessed countertop requirements.
for all units: Standard finishes include white, almond or black.
Other laminate finishes Nevamar or equal available upon special order.
Click on photo at left to enlarge.
Orientation: Left photo can be manufactured
and shipped as shown or with sink and refrigerator locations switched around.
This model also available in 60,
72 and 96 Inch width Sizes.
Other custom width sizes also available, call us toll free at 888-550-1198
for custom quotes and lead time, or
Open space beneath sink for wheelchair access.
96" wide ADA
Compliant Compact Kitchen
Includes a 20 gauge stainless steel countertop with drop-in
double sink bowl, single lever faucet, sink
strainers, open space beneath sinks for wheelchair
access, base storage cabinets and 24” wide
ADA compliant dishwasher
This ADA kitchen measures 96" wide by 25"
deep by 34" high and includes a 4 1/2" backsplash

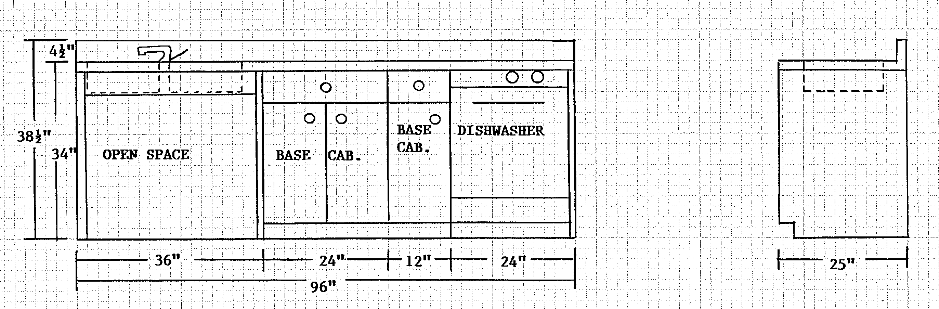

Rough-in plumbing diagram of a 96 inch wide ADA accessible Compact Kitchen Unit
96" wide ADA Compliant Compact Kitchen Unit
Codes for Barrier-Free models:
Approved ADA accessible modular barrier-free Compact Kitchen
units shown on this page meet all Federal ADA requirements, New York City local
law 58/87 and ANSI A117.1-1986 specifications.
ADA compliant dishwasher is in
color with white melamine cabinetry. Price is $4633.
Matching Set Wall Cabinets available, optional.
Stainless Steel front
ADA compliant dishwasher (black control
panel) and Wilsonart Satin Stainless high pressure laminate, price is $5550.
Shipping is $265 to
Eastern coast US destinations, $425 to all
West coast destinations via
common carrier and include lift gate freight delivery service.
96" wide ADA Compact Kitchen shown above has inside
dimensions for each sink bowl of 14” X 15-3/4” X 5-1/4” deep. This is an
compliant double bowl kitchen sink.
Order Selections and
Other options: Please specify at
time of order
- Customer may also opt for an ADA
compliant Single bowl kitchen sink instead of a double bowl
- Other custom made width sizes are
- You get to choose the orientation of the
kitchen unit, example, sink on the right hand side instead of left
hand side, etc.
- ADA compliant Gas or Electric Range,
Stove with Oven, available, optional
- Microwave with Hood
- Matching Set Wall Cabinets
are available, optional
- Modification for smaller units, Storage
Cabinet replacing Dishwasher or Electric Oven
- Other appliances such as under counter
refrigerator with freezer compartment,
Gas or Electric Burners,
Garbage Disposal Unit also
Allow 4-6 weeks for the white melamine unit, other finishes may require 6-8
weeks to manufacture and ship.
Accessories and Modifications:

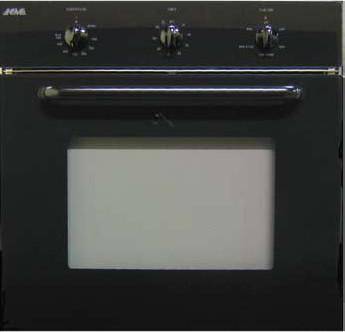

undercounter refrigerator with an Electric Oven
Your choice of replacing the undercounter refrigerator unit shown above
with an electric oven, photo at left.
Dimensions: Exterior Depth: 21 7/8". Exterior Height: 23
1/4". Exterior Width: 24"
Convection Oven, Interior Oven Light, Timer
Technical Details: 10 Amps, 240 Volts, 2000 Watts
Click photo to enlarge picture

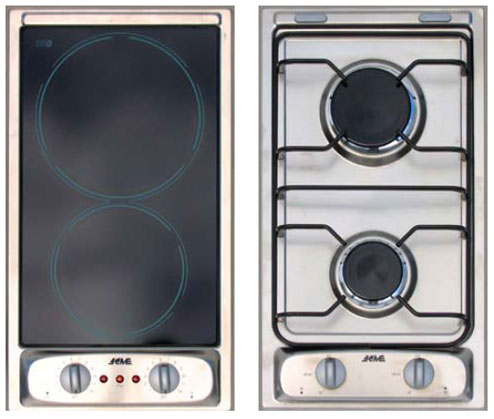

Electric or Gas Cooking Burner Units
Your choice of Cooking Burner Unit - Electric or Gas Cooktops
Far left: Two burner ceran cooktop with stainless steel frame. Available
in 115 or 230 volts. The 115 volt cooktop comes with one 1000 watt and
one 1400 watt element, 2.4 KW, 20.87 amps. The 230 volt cooktop comes
with one 1200 watt and one 1700 watt element, 2.9 KW, 12.61 amps. Each
burner has a 3 circuit cooking zone and a power indicator light.
Supplied 3 wire, single phase A.C. and requires a direct connection.
Dimensions: 111⁄3" × 201⁄16" × 21⁄2", UL and CSA approved.
At Left 2EG: Stainless steel sealed burner gas cooktop with electronic
ignition. Front burner 6,000 BTU/hr and rear burner 10,000 BTU/hr. 120
volt, 0.1 amp max.. Easily converts for use with natural or L.P. gas.
Dimensions: 111⁄3" × 201⁄16" × 21⁄2"
Click photo to enlarge picture

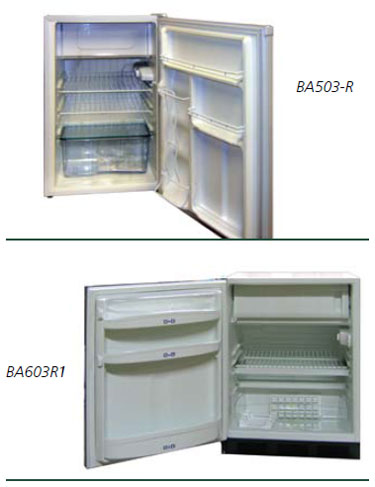

Choice of refrigerator models - 4.3 cu.ft
capacity or larger 5.1 cu.ft capacity
with Automatic cycle defrost
Your choice of two refrigerator models, 4.3 cu.ft capacity or 5.1 cu.ft
MODEL BA503-R - Dimensions: 19-3⁄4"w
× 20"d × 32-1⁄2"h
• 4.3 cu.ft. capacity
• white or black
• reversible hinges
• 21 lb. capacity freezer section, full height inner door liner,
magnetic gasket, manual defrost, high efficiency foam insulation,
cushion mounted compressor.
• 78 lbs packed
• 115V, 50/60 cycle, 1.9 amps.
• ETL approval.
MODEL BA603R1 - Dimensions: 23-5⁄8"w
× 24"d × 32-1⁄2"h
• Automatic cycle defrost
• 5.1 cu.ft. capacity
• white with door frame to accept front panel
• reversible hinges
• 30 lb. capacity freezer section, deluxe crispers, interior light,
adjustable shelves, dairy compartment, magnetic door gasket, thin wall
insulation, high impact plastic liner, bottle rack, cushion mounted
• 98 lbs. packed
• 115V, 50/60 cycle, 2.1 amps, UL listed
Keywords: Wheelchair Accessible Kitchens, ADA
Approved Kitchens, Compact Kitchen Units, ADA Compliant Compact Kitchen
Click photo to enlarge picture

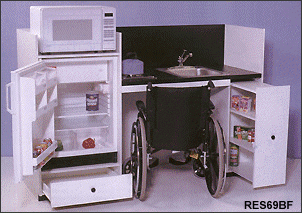

Two burners, 6.0 cu.ft removable refrigerator with
automatic cycle defrost included with these Wheelchair
accessible Kitchen Units.
Shown with a laminate countertop to include rear and side panels, drop In
stainless steel kitchen sink bowl, faucet and two electric burners.
Special design feature:
Convenient slide out vertical storage door.
Handicap Accessible, Barrier-Free Kitchenettes are
also available in 60", 63", 69", 72", 75" and 78" widths.

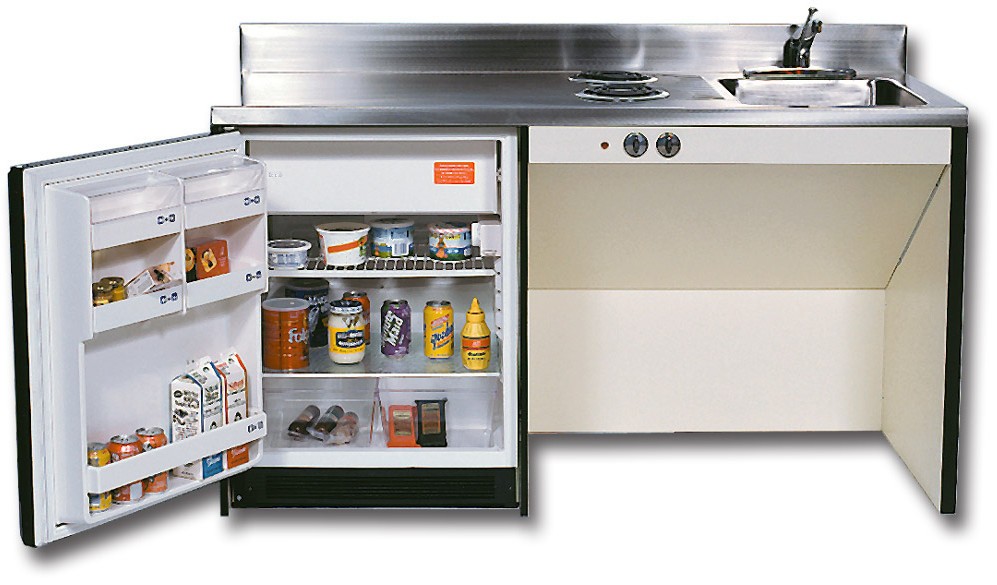

RES60BF with options:
Model shown includes a 20 gauge recessed stainless steel countertop
with sink bowl, single lever faucet, sink strainer, open space
beneath sink for wheelchair access, two electric burners, 5.1 cu.
Ft. removable refrigerator with automatic cycle defrost, upper wall
cabinets, rear wall shield, range hood and 1.0 cu. Ft. microwave
Barrier- Free Kitchenettes
The design elements of these compact kitchen units incorporate all
of the essential structural, design and component features necessary
to conform to the strictest local and state codes for wheelchair and
physically disabled accessibility. Our units maximize kitchen
efficiency in minimum spaces. Standard sizes are listed and custom
sizes are readily available.
Countertop and sink on one plane 34" from floor and continuous 34"
height extends above refrigerator. The sink drain is located on the
side of the bowl rather than the center to maximize under sink leg
Codes for Barrier Free Models
Acme's modular barrier -free units meet all Federal ADA
requirements, New York City local law 58/87 and ANSI A117.1-1986
Standard barrier free unit kitchens include a 20 gauge stainless
steel countertop with sink bowl, single lever faucet, sink strainer,
two burners (either gas or electric) and 5.1 cu.ft. removable
refrigerator with automatic cycle defrost. The standard cabinetry is
constructed of 5/8" thick 48 lb industrial grade particleboard which
is fused on both sides with acid resistant thermoset melamine to
exceed the standards of the American Laminators Association.
Wall cabinet sections to match base units
Wall shields available for rear and/or side walls in either
stainless steel or laminate as desired.
Range hood 24" wide and features two speed fan, light, aluminum mesh
filter and charcoal filter. Also available for ducted application.
We offer various size microwave ovens. The microwave used for the
upper wall cabinet section is 24" wide and has a 1.0 cu.ft.capacity.
Features include digital touch controls, 9 power levels and
clock/timer. Operates on 115v, 60 cycle ac 1.2 kw, 10 amps and is
plug in type. We also offer a 30" wide microwave oven with a hood
kit as an alternate.
Removable Undersink Cabinet
Available on all barrier free units for conversion to accommodate
Standard finishes include white, almond, gray, or black. Refer to
the Colors, Options & Modifications page for additional finishes and
refrigerator w/ auto defrosting model - add $235.00
Upper Wall Cabinets, 24Hx20Wx12D - add
$146.00 / each
Upper Wall Cabinets, 24Hx16Wx12D - add
$146.00 / each
Stainless Steel Backsplash - for 60" wide x 18" high
add $257.00 - (available in many
Stainless Steel Sidesplash - available in many
Under Cabinet Microwave oven, Radar view, under cabinet mounted
microwave oven - add
Under Cabinet Range Hood (available in white, black or Stainless
Steel). Specify Ducted or Ductless - add
Factory Change Refrigerator door swing / hinges door opening
orientation - add

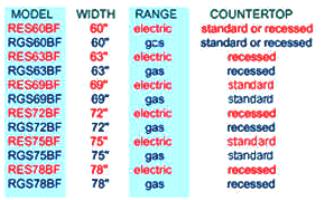

Available models, options and width sizes
Related keywords and suggestions: compact kitchens, ADA handicap
kitchens, Summit kitchen, handicap accessible kitchens, induction hotplate
cooktop, kitchenette compact kitchen, Avanti kitchen unit, Acme kitchen
unit, 3-in-1 kitchen, sink with 2-burners, efficiency compact kitchen,
efficiency kitchen unit, guest quarters kitchen, studio apartment kitchen,
stainless sink kitchen, stainless countertop kitchen,2 electric burners,
kitchen with refrigerator, kitchen storage compartment, all-in-one kitchen,
acme kitchen, summit kitchens, Avanti kitchen, Danby kitchen, king kitchen,
compact kitchens, custom kitchen orders, custom kitchen units, combination
kitchens, easy-to-fit kitchen, 120V kitchen unit, efficiency kitchens units,
complete kitchen package, mini-kitchens, electric Kitchenette sale, gas
Kitchenette sale, home kitchenette unit, kitchenette design selections,
kitchenette for sale, black kitchenette unit, kitchenette with a stove, motel
kitchenette unit, kitchenette sales and ideas, stainless steel kitchen, hotel
kitchenette suite, rv motorhome appliances, rv motorhome kitchenette, camper
trailer kitchen, white kitchenette unit
See also ADA accessible,
energy efficient, dual motor
Small Electric Ovens and Mini Kitchens -
Perfect for small apartments, offices, RV's and other space saving locations.
picture to read more and view
Small Electric Ovens
Steel Pro • Series Gas Ranges
24" Sealed Burner Ranges,
30" Sealed Burner Ranges,
Sealed Burner Ranges,
36" Open Burner Ranges
is a complete manufacturer, designing and making its own tools and dies,
stamping parts and applying porcelain enamel to the raw steel parts and then
assembling those parts into modern gas and electric ranges in 20", 24", 30"
and 36" widths.
